onsemi-FDMC2674 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	220 V
Current - Continuous Drain (Id) @ 25°C:	1A (Ta), 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	366mOhm @ 1A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1180 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 42W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MLP (3.3x3.3)
Package / Case:	8-PowerWDFN

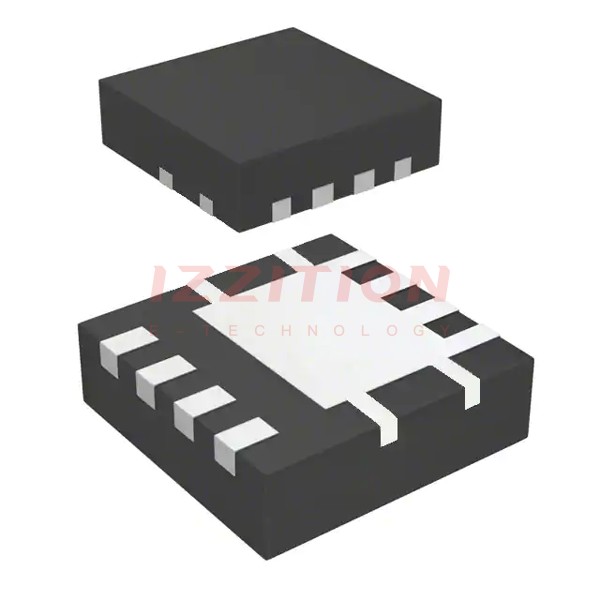

onsemi FDMC2674
