onsemi-FDMA6676PZ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	13.5mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	46 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	2160 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-MicroFET (2x2)
Package / Case:	6-PowerWDFN

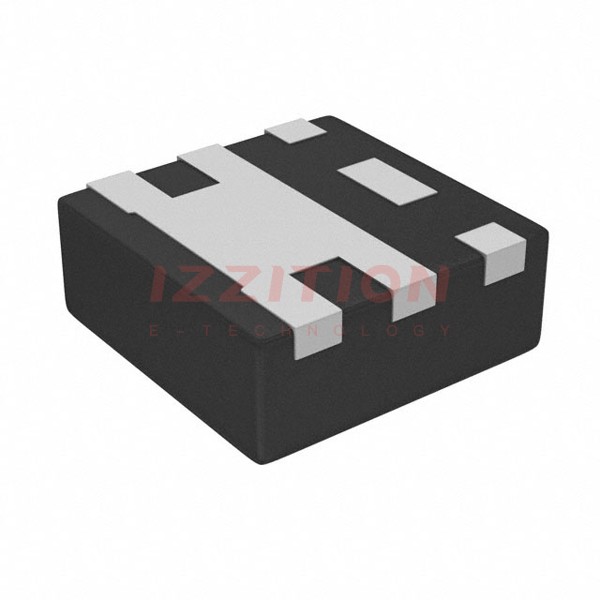

onsemi FDMA6676PZ
