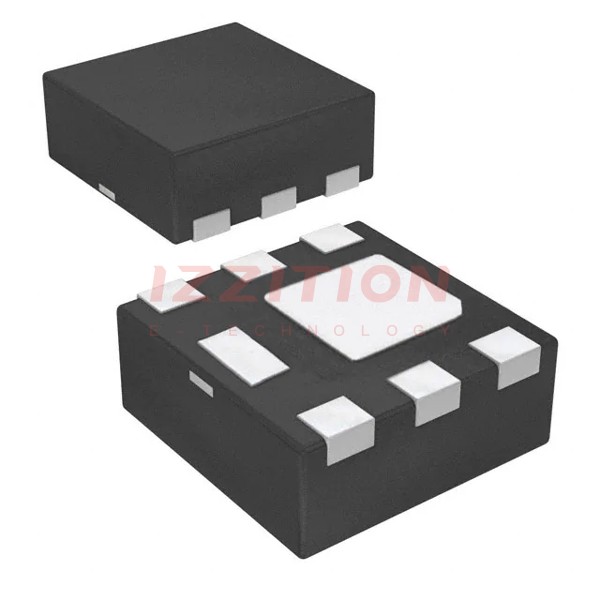

| Part Number | FDMA530PZ | FDMA510PZ | FDMA520PZ |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6.8A (Ta) | 7.8A (Ta) | 7.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 1.5V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 6.8A, 10V | 30mOhm @ 7.8A, 4.5V | 30mOhm @ 7.3A, 4.5V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V | 27 nC @ 4.5 V | 20 nC @ 4.5 V |
| Vgs (Max) | ±25V | ±8V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1070 pF @ 15 V | 1480 pF @ 10 V | 1645 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.4W (Ta) | 2.4W (Ta) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
