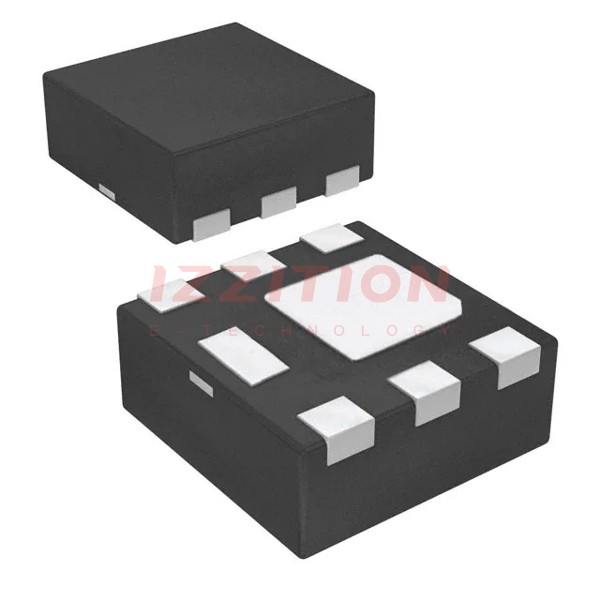

| Part Number | FDMA410NZ | FDMA420NZ | FDMA430NZ | FDMA410NZT |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A (Ta) | 5.7A (Ta) | 5A (Ta) | 9.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 2.5V, 4.5V | 2.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 9.5A, 4.5V | 30mOhm @ 5.7A, 4.5V | 40mOhm @ 5A, 4.5V | 23mOhm @ 9.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V | 12 nC @ 4.5 V | 11 nC @ 4.5 V | 14 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±12V | ±12V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1080 pF @ 10 V | 935 pF @ 10 V | 800 pF @ 10 V | 1310 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.4W (Ta) | 2.4W (Ta) | 2.4W (Ta) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-MicroFET (2x2) | 6-UDFN (2.05x2.05) |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-UDFN Exposed Pad |
