| Part Number | FDMA1027PT | FDMA1027P |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3A | 3A |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 3A, 4.5V | 120mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V | 6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 435pF @ 10V | 435pF @ 10V |
| Power - Max | 700mW | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

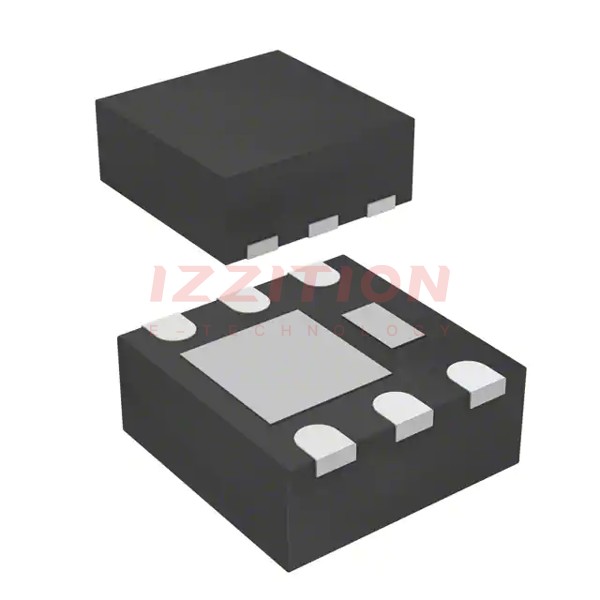

| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-MicroFET (2x2) | 6-MicroFET (2x2) |
