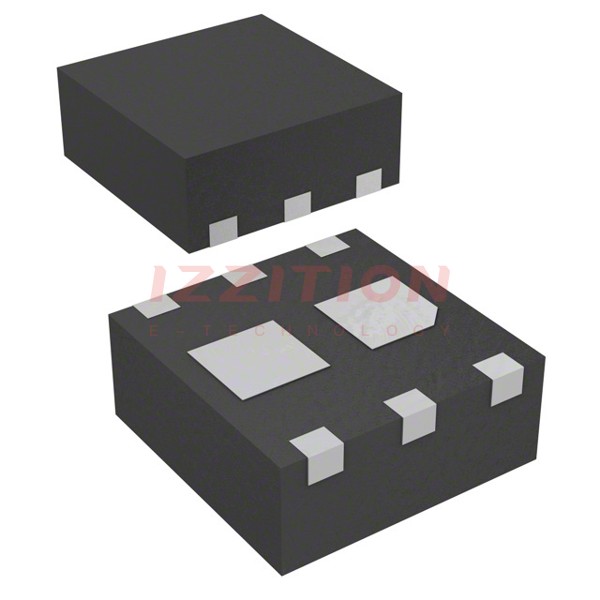

| Part Number | FDMA1023PZ | FDMA1029PZ | FDMJ1023PZ | FDMA3023PZ |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Obsolete | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V | 20V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A | 3.1A | 2.9A | 2.9A |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 3.7A, 4.5V | 95mOhm @ 3.1A, 4.5V | 112mOhm @ 2.9A, 4.5V | 90mOhm @ 2.9A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 4.5V | 10nC @ 4.5V | 6.5nC @ 4.5V | 11nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 655pF @ 10V | 540pF @ 10V | 400pF @ 10V | 530pF @ 15V |
| Power - Max | 700mW | 700mW | 700mW | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 6-WFDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-MicroFET (2x2) | 7-SOIC | SC-75, MicroFET | 6-MicroFET (2x2) |
