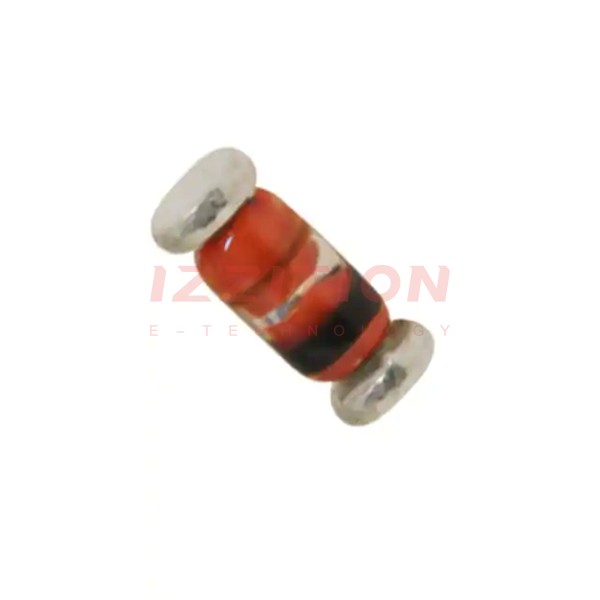

| Part Number | FDLL4448 | FDLL4148 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V |
| Current - Average Rectified (Io) | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA | 1 V @ 10 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V | 5 µA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 |
| Operating Temperature - Junction | 175°C (Max) | -65°C ~ 175°C |
