onsemi-FDLL3595 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	125 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	3 µs
Current - Reverse Leakage @ Vr:	1 nA @ 125 V
Capacitance @ Vr, F:	8pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package:	SOD-80
Operating Temperature - Junction:	-65°C ~ 200°C

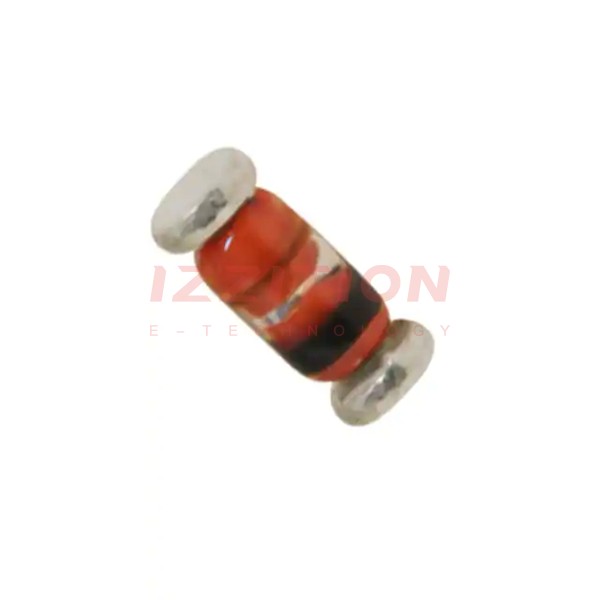

onsemi FDLL3595
