onsemi-FDLL333 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	125 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1.15 V @ 300 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 nA @ 125 V
Capacitance @ Vr, F:	6pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package:	SOD-80
Operating Temperature - Junction:	175°C (Max)

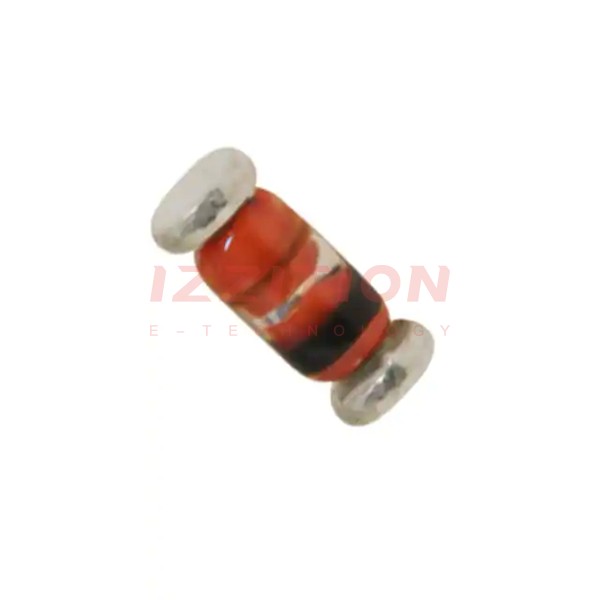

onsemi FDLL333
