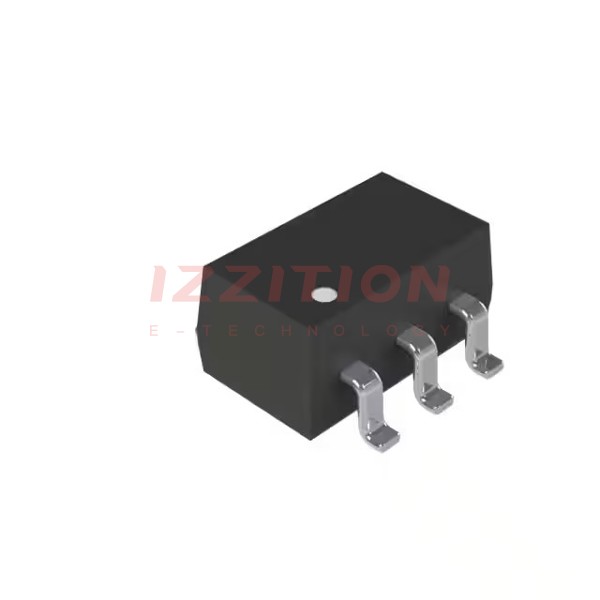

| Part Number | FDG327N | FDG329N | FDG327NZ |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) | 1.5A (Ta) | 1.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 2.5V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 1.5A, 4.5V | 90mOhm @ 1.5A, 4.5V | 90mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.3 nC @ 4.5 V | 4.6 nC @ 4.5 V | 6 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±12V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 423 pF @ 10 V | 324 pF @ 10 V | 412 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 420mW (Ta) | 420mW (Ta) | 420mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
