| Part Number | FDFMA2P029Z | FDFMA3P029Z |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta) | 3.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | - |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 3.1A, 4.5V | 87mOhm @ 3.3A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V | 10 nC @ 10 V |
| Vgs (Max) | ±12V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 720 pF @ 10 V | 435 pF @ 15 V |
| FET Feature | Schottky Diode (Isolated) | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.4W (Tj) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

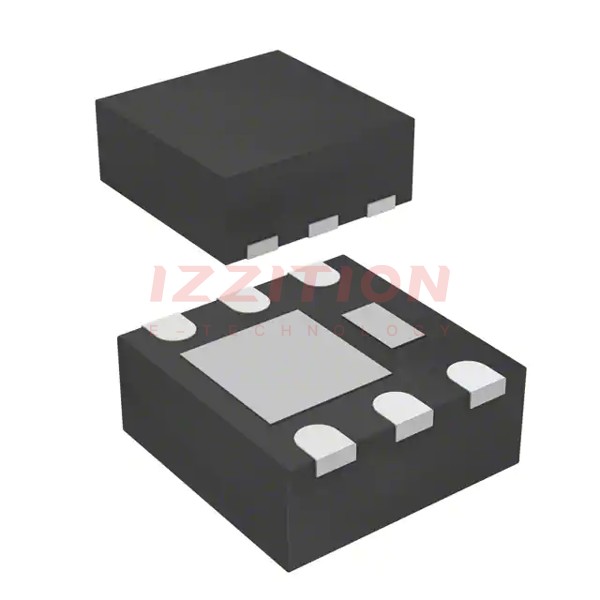

| Supplier Device Package | 6-MicroFET (2x2) | 6-MLP (2x2) |
| Package / Case | 6-VDFN Exposed Pad | 6-WDFN Exposed Pad |
