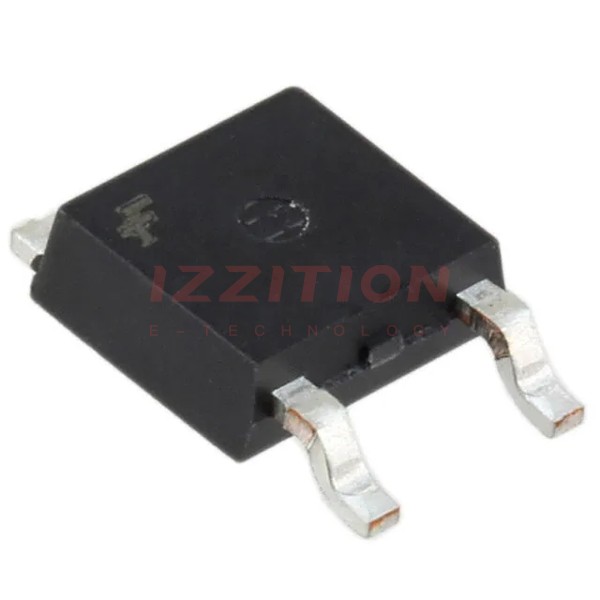

| Part Number | FDD1600N10ALZ | FDD1600N10ALZD |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 6.8A (Tc) | 6.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 3.4A, 10V | 160mOhm @ 3.4A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA | 2.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.61 nC @ 10 V | 3.61 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 225 pF @ 50 V | 225 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 14.9W (Tc) | 14.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TO-252AA | TO-252-4 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
