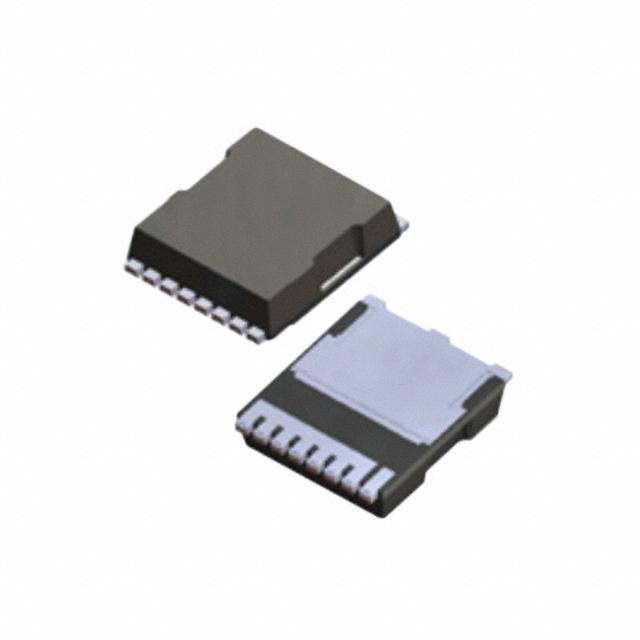

| Part Number | FDBL9406-F085 | FDBL9406L-F085 | FDB9406-F085 | FDBL9401-F085 | FDBL9403-F085 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Last Time Buy | Obsolete | Active | Last Time Buy | Last Time Buy |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 43A (Ta), 240A (Tc) | 110A (Tc) | 300A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 4.5V, 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.2mOhm @ 80A, 10V | 1.1mOhm @ 80A, 10V | 1.8mOhm @ 80A, 10V | 0.65mOhm @ 80A, 10V | 0.9mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 3V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 107 nC @ 10 V | 121 nC @ 10 V | 138 nC @ 10 V | 296 nC @ 10 V | 188 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7735 pF @ 25 V | 8600 pF @ 20 V | 7710 pF @ 25 V | 15900 pF @ 25 V | 12000 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 300W (Tj) | 3.5W (Ta), 300W (Tc) | 176W (Tj) | 429W (Tj) | 357W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-HPSOF | 8-HPSOF | D²PAK (TO-263) | 8-HPSOF | 8-HPSOF |
| Package / Case | 8-PowerSFN | 8-PowerSFN | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | 8-PowerSFN | 8-PowerSFN |
