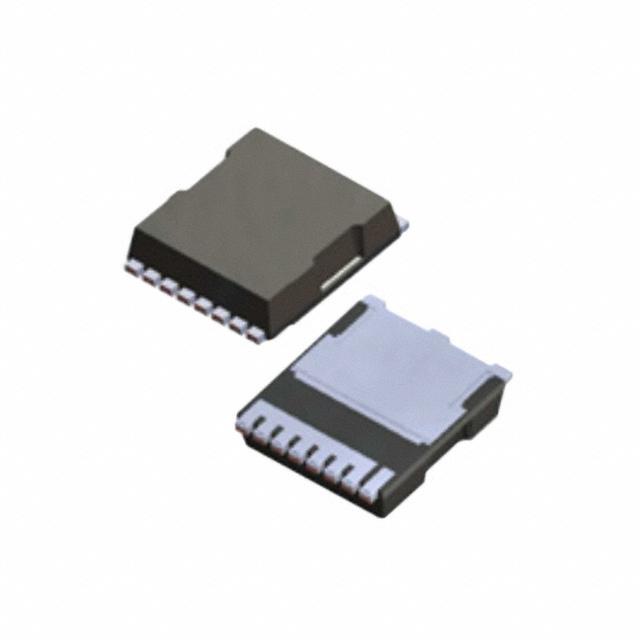

| Part Number | FDBL86366-F085 | FDBL86566-F085 | FDB86366-F085 | FDBL86066-F085 | FDBL86361-F085 | FDBL86363-F085 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 60 V | 80 V | 100 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 220A (Tc) | 240A (Tc) | 110A (Tc) | 185A (Tc) | 300A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 80A, 10V | 2.4mOhm @ 80A, 10V | 3.6mOhm @ 80A, 10V | 4.1mOhm @ 80A, 10V | 1.4mOhm @ 80A, 10V | 2mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 112 nC @ 10 V | 110 nC @ 10 V | 112 nC @ 10 V | 69 nC @ 10 V | 188 nC @ 10 V | 169 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6320 pF @ 40 V | 6655 pF @ 30 V | 6280 pF @ 40 V | 3240 pF @ 50 V | 12800 pF @ 25 V | 10000 pF @ 40 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 300W (Tj) | 300W (Tj) | 176W (Tj) | 300W (Ta) | 429W (Tj) | 357W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-HPSOF | 8-HPSOF | D²PAK (TO-263) | 8-HPSOF | 8-HPSOF | 8-HPSOF |
| Package / Case | 8-PowerSFN | 8-PowerSFN | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | 8-PowerSFN | 8-PowerSFN | 8-PowerSFN |
