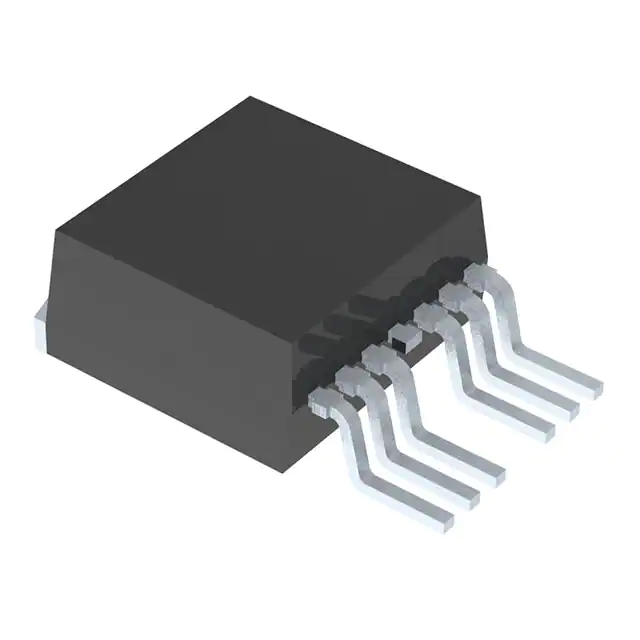

| Part Number | FDB070AN06A0 | FDB050AN06A0 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 80A (Tc) | 18A (Ta), 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 80A, 10V | 5mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V | 80 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3000 pF @ 25 V | 3900 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 175W (Tc) | 245W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
