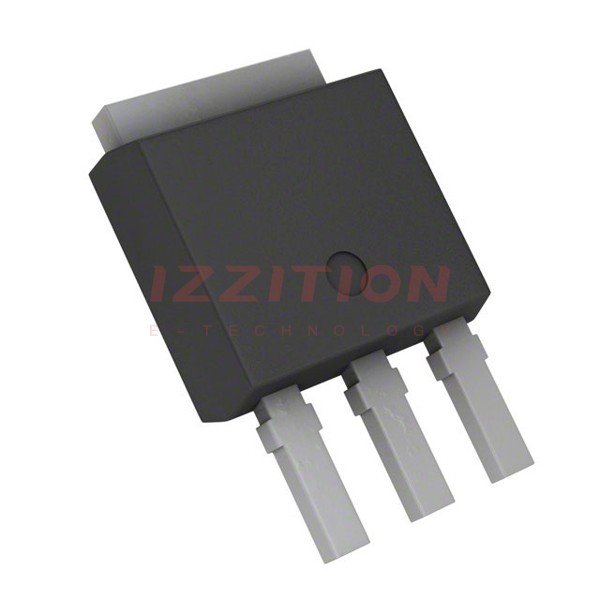

| Part Number | FCU600N65S3R0 | FCP600N65S3R0 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 3A, 10V | 600mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 600µA | 4.5V @ 600µA |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V | 11 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 465 pF @ 400 V | 465 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 54W (Tc) | 54W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | TO-220-3 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-220-3 |
