onsemi-FCPF250N65S3R0L-F154 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	12A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	250mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 290µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	1010 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	31W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220F-3
Package / Case:	TO-220-3 Full Pack

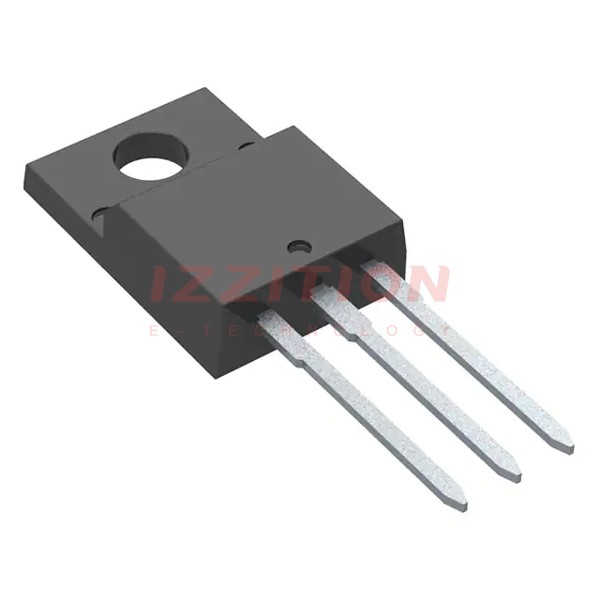

onsemi FCPF250N65S3R0L-F154
