onsemi-FCMT360N65S3 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	360mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	730 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-PQFN (8x8)
Package / Case:	4-PowerTSFN

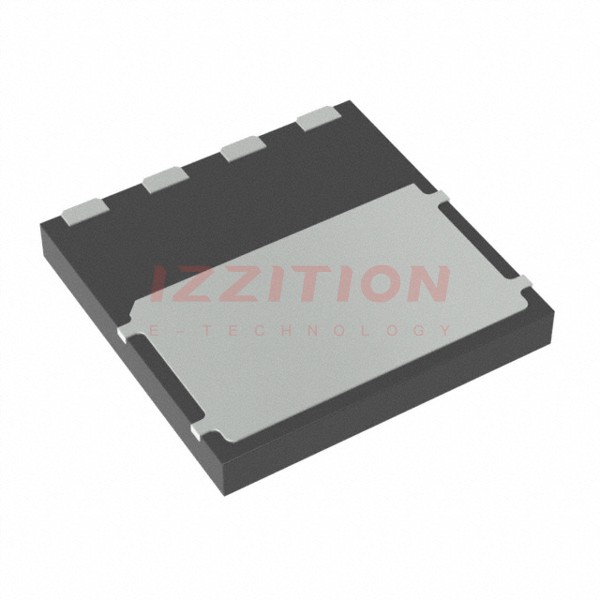

onsemi FCMT360N65S3
