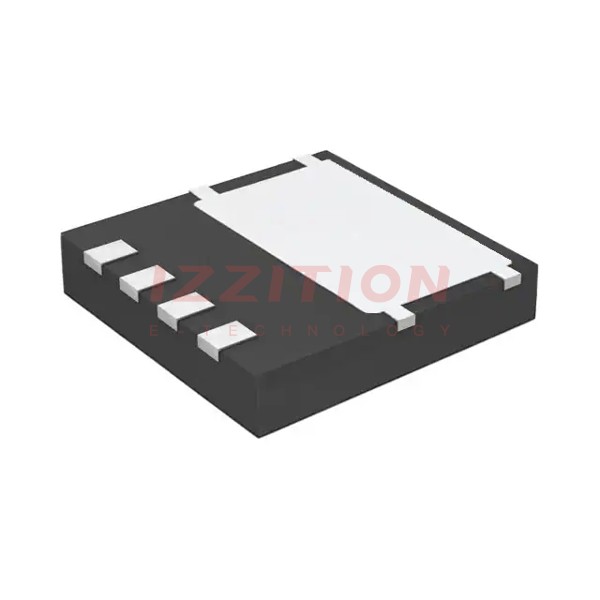

| Part Number | FCMT299N60 | FCMT199N60 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) | 20.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 299mOhm @ 6A, 10V | 199mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V | 74 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1948 pF @ 380 V | 2950 pF @ 100 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 125W (Tc) | 208W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | Power88 | Power88 |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN |
