| Part Number | FCH125N60E | FCH165N60E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Last Time Buy | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Tc) | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 14.5A, 10V | 165mOhm @ 11.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V | 75 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2990 pF @ 380 V | 2434 pF @ 380 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 278W (Tc) | 227W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

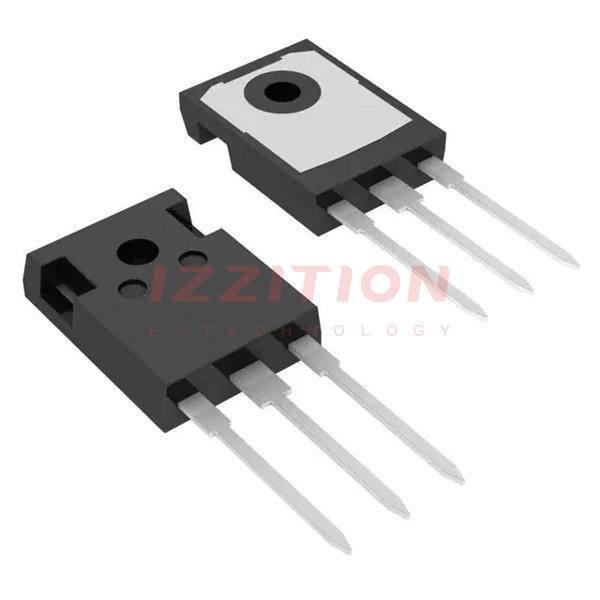

| Supplier Device Package | TO-247-3 | TO-247-3 |
| Package / Case | TO-247-3 | TO-247-3 |
