Please send RFQ , we will respond immediately.

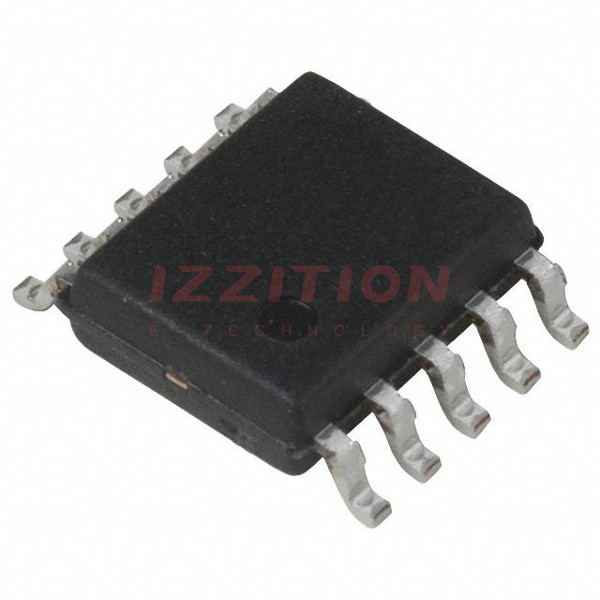

| Part Number | FAN7601BGX | FAN7601BMX | FAN7601GX | FAN7601BG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Output Isolation | - | - | - | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 12 V | 12 V | 12 V | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V | 8V ~ 20V | 8V ~ 20V | 8V ~ 20V |
| Duty Cycle | 95% | 95% | 95% | 95% |
| Frequency - Switching | Up to 300kHz | Up to 300kHz | Up to 300kHz | Up to 300kHz |
| Power (Watts) | - | - | - | - |
| Fault Protection | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -25°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP | 8-SOIC | 10-SSOP | 10-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
