| Part Number | FAN604GMX | FAN604SMX | FAN604MX | FAN604PMX | FAN604HMX |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Last Time Buy | Active | Active | Active | Last Time Buy |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No | No | No |
| Voltage - Breakdown | - | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 17.2 V | 17.2 V | 17.2 V | 17.2 V | 17.2 V |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 25V | 6V ~ 25V | 6V ~ 25V | 6V ~ 25V | 6V ~ 25V |
| Duty Cycle | - | - | - | - | - |
| Frequency - Switching | 18.5kHz ~ 130kHz | 18.5kHz ~ 130kHz | 18.5kHz ~ 130kHz | 25kHz ~ 130kHz | 18.5kHz ~ 130kHz |
| Power (Watts) | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Over Temperature, Over Voltage |
| Control Features | EN | EN | - | EN | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |

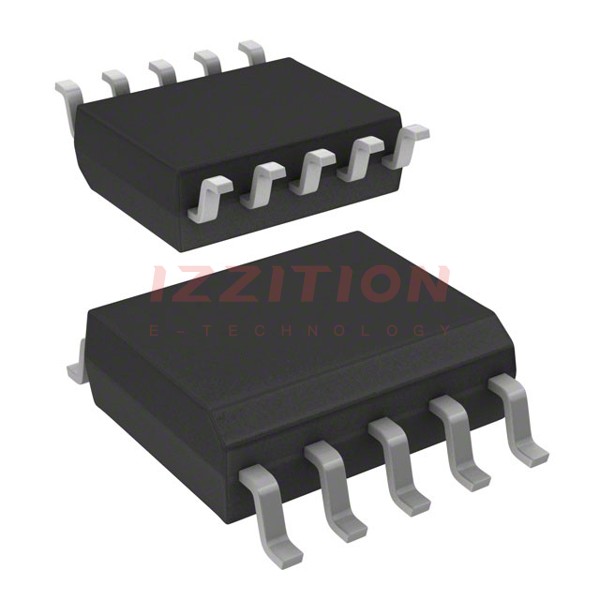

| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC | 10-SOIC | 10-SOIC | 10-SOIC | 10-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
