Please send RFQ , we will respond immediately.
| Part Number | FAN5702UMP20X | FAN5702UMP30X | FAN5701UMP20X |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Last Time Buy | Last Time Buy | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 6 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 30mA | 30mA | 20mA |
| Frequency | 1.2MHz | 1.2MHz | 1.2MHz |
| Dimming | I²C, PWM | I²C, PWM | PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

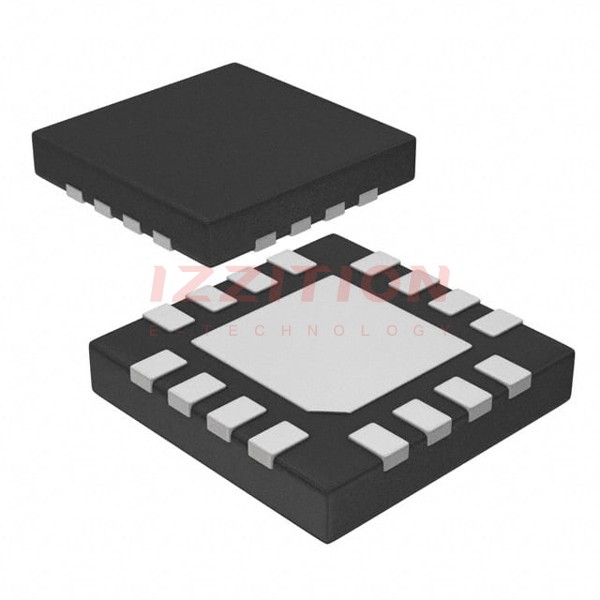

| Package / Case | 16-UFQFN Exposed Pad | 16-UFQFN Exposed Pad | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-UMLP (3x3) | 16-UMLP (3x3) | 16-UMLP (3x3) |
