| Part Number | FAN5702UC30X | FAN5701UC30X | FAN5702UC20X |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Last Time Buy | Obsolete | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 6 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 30mA | 30mA | 30mA |
| Frequency | 1.2MHz | 1.2MHz | 1.2MHz |
| Dimming | I²C, PWM | PWM | I²C, PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

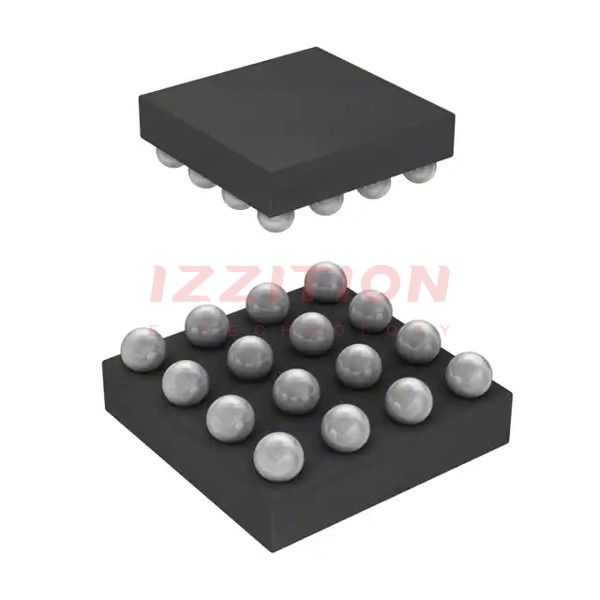

| Package / Case | 16-UFBGA, WLCSP | 16-UFBGA, WLCSP | 16-UFBGA, WLCSP |
| Supplier Device Package | 16-WLCSP (1.71x1.71) | 16-WLCSP (1.56x1.56) | 16-WLCSP (1.56x1.56) |
