Please send RFQ , we will respond immediately.

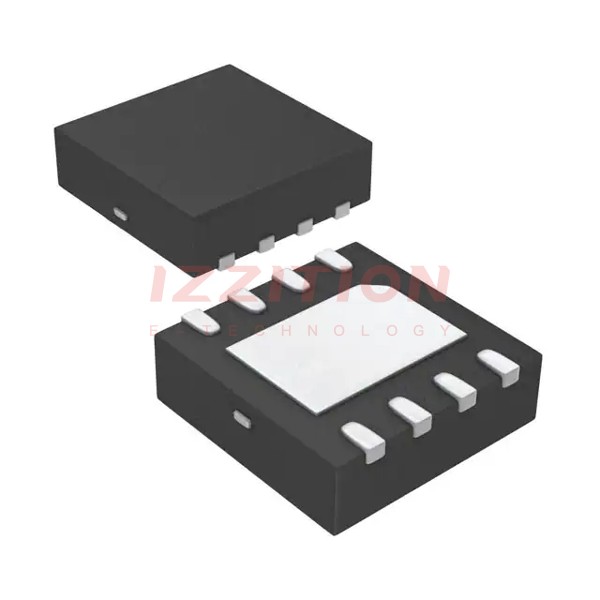

| Part Number | FAN5610MPX | FAN5616MPX | FAN5617MPX | FAN5611MPX | FAN5613MPX |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Linear | DC DC Regulator | DC DC Regulator | Linear | Linear |
| Topology | - | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | - | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 4 | 3 | 3 | 4 | 4 |
| Voltage - Supply (Min) | 2.7V | 2.5V | 2.7V | 3.3V | 3.3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - | - | - |
| Current - Output / Channel | 21mA | 40mA | 30mA | 40mA | 40mA |
| Frequency | - | 1MHz | 1MHz | - | - |
| Dimming | PWM | PWM | - | Analog, PWM | Analog, PWM |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 6-VDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) | 16-MLP (3x3) | 16-MLP (3x3) | 6-MicroFET (2x2) | 8-MLP (2x2) |
