Please send RFQ , we will respond immediately.

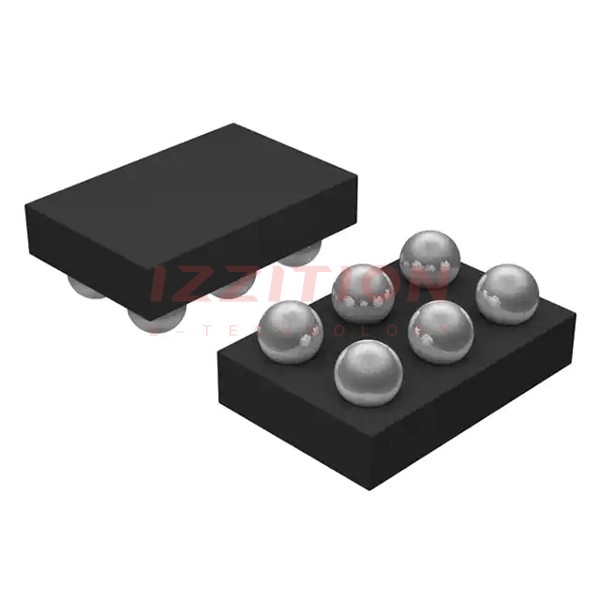

| Part Number | FAN53601AUC18X | FAN53611AUC18X | FAN53601AUC10X |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.3V | 2.3V | 2.3V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1V |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 600mA | 1A | 600mA |
| Frequency - Switching | 6MHz | 6MHz | 6MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.16x0.86) | 6-WLCSP (1.23x0.88) | 6-WLCSP (1.23x0.88) |
