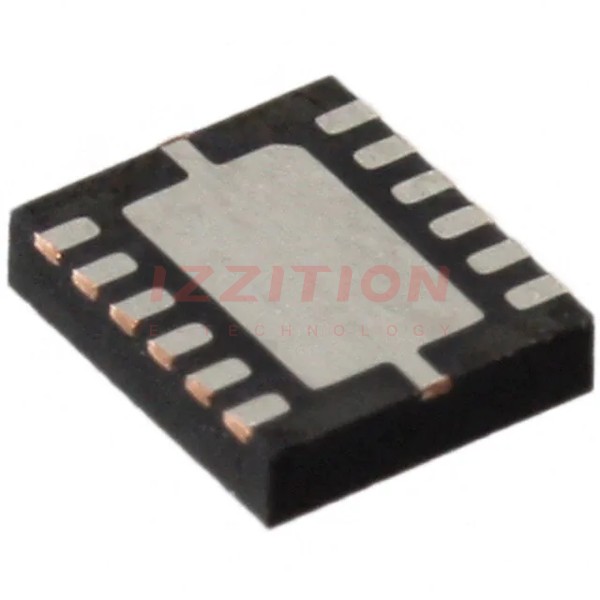

| Part Number | FAN5354MPX | FAN5350MPX | FAN5353MPX |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Fixed | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 1.82V | 0.8V |
| Voltage - Output (Max) | 2V | - | 4.95V |
| Current - Output | 3A | 600mA | 3A |
| Frequency - Switching | 3MHz | 3MHz | 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad | 6-WDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-MLP (3.5x3) | 6-MLP (3x3) | 12-MLP (3.5x3) |
