| Part Number | FAN48610UC50X | FAN48617UC50X | FAN48619UC50X | FAN48630UC50X | FAN48610BUC50X |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Active | Active | Active | Last Time Buy | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost | Boost |
| Output Type | Fixed | Fixed | Fixed | Programmable | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.5V | 2.7V | 2.7V | 2.35V | 2.5V |
| Voltage - Input (Max) | 4.5V | 4.5V | 4.5V | 5.5V | 4.5V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V, 5.29V | 5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | 1A (Switch) | 1A | 1A | 1.5A (Switch) | 1A (Switch) |
| Frequency - Switching | 2.5MHz | - | 2.3MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

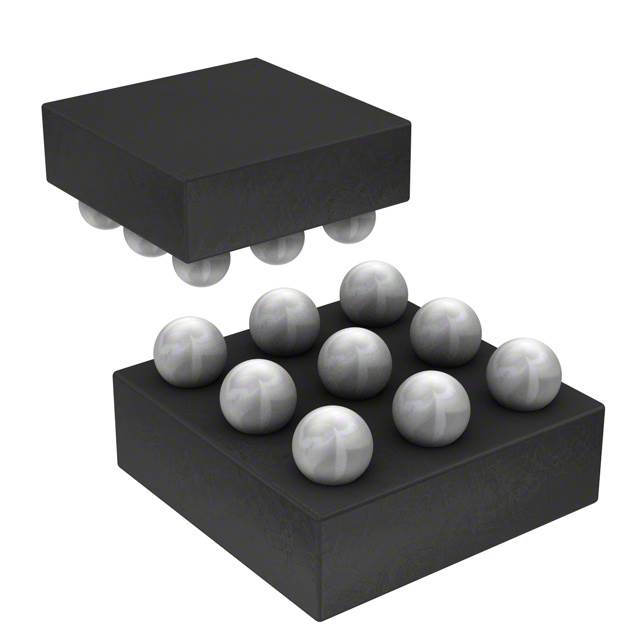

| Package / Case | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP | 16-UFBGA, WLCSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.22x1.22) | 9-WLCSP (1.22x1.22) | 9-WLCSP (1.21x1.21) | 16-WLCSP (1.78x1.78) | 9-WLCSP (1.22x1.22) |
