| Part Number | FAN3122CMPX | FAN3122TMPX | FAN3122CMX | FAN3121CMPX |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - | 0.8V, 2V | - | - |
| Current - Peak Output (Source, Sink) | 10.6A, 11.4A | 10.6A, 11.4A | 10.6A, 11.4A | 10.6A, 11.4A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - |
| Rise / Fall Time (Typ) | 23ns, 19ns | 23ns, 19ns | 23ns, 19ns | 23ns, 19ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

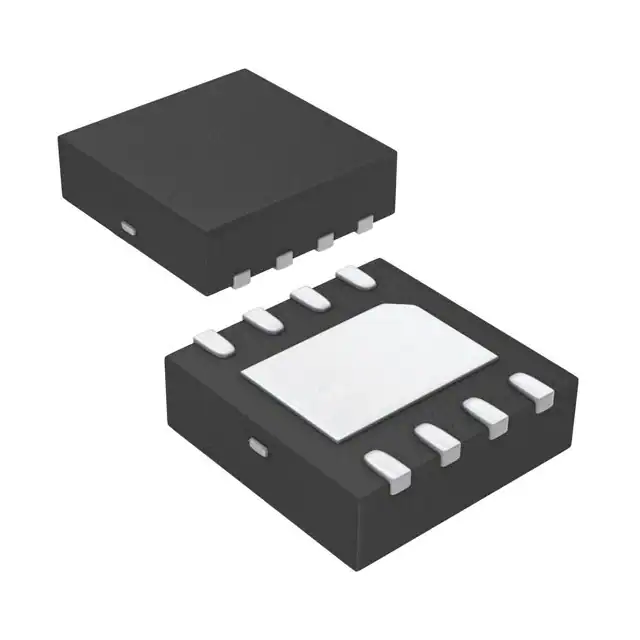

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) | 8-MLP (3x3) | 8-SOIC | 8-MLP (3x3) |
