onsemi-FAN2560UC13X_SN00140 - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.2V @ 350mA
Current - Output:	350mA
Current - Quiescent (Iq):	11 µA
Current - Supply (Max):	70 µA
PSRR:	50dB ~ 60dB (10Hz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Temperature, Short Circuit, Soft Start, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	5-UFBGA, WLCSP
Supplier Device Package:	5-WLCSP (0.96x1.33)

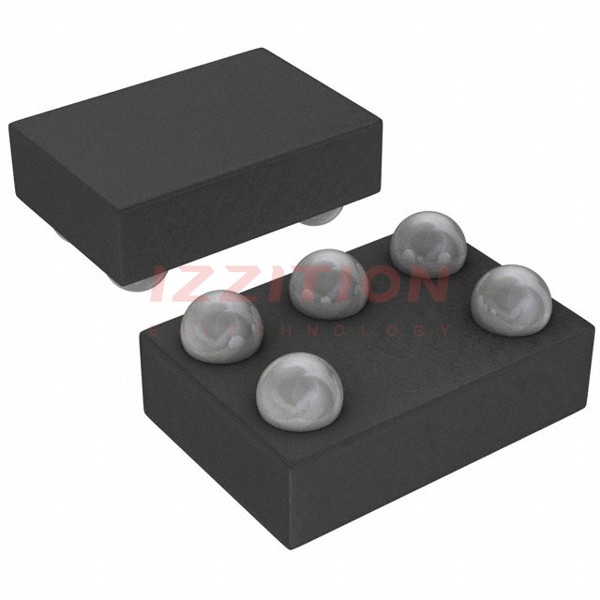

onsemi FAN2560UC13X_SN00140
