Please send RFQ , we will respond immediately.
| Part Number | FAN2559MP15X | FAN2559MP18X | FAN2558MP15X | FAN2559MP10X | FAN2559MP12X | FAN2559MP13X |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 1.5V | 1V | 1.2V | 1.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | - | - | - |
| Current - Output | 180mA | 180mA | 180mA | 180mA | 180mA | 180mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| Current - Supply (Max) | - | - | - | - | 150 µA | - |
| PSRR | 50dB (100kHz) | 50dB (100kHz) | 50dB (100kHz) | 50dB (100kHz) | 50dB (100kHz) | 50dB (100kHz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C (TJ) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

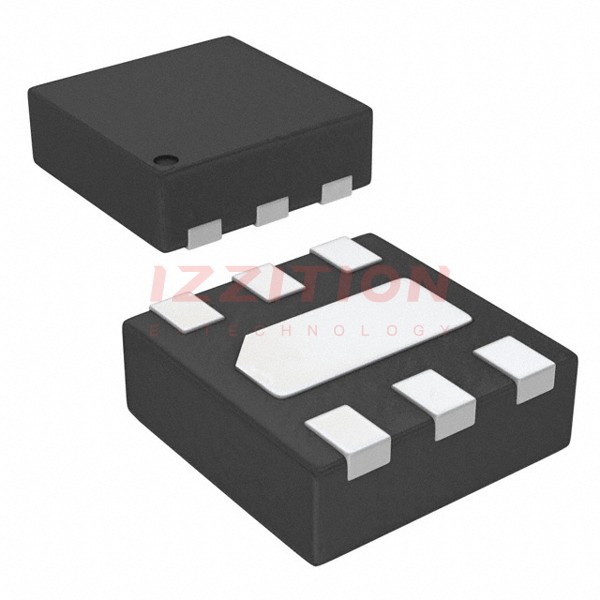

| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-MLP (2x2) | 6-DFN (2x2) |
