Please send RFQ , we will respond immediately.

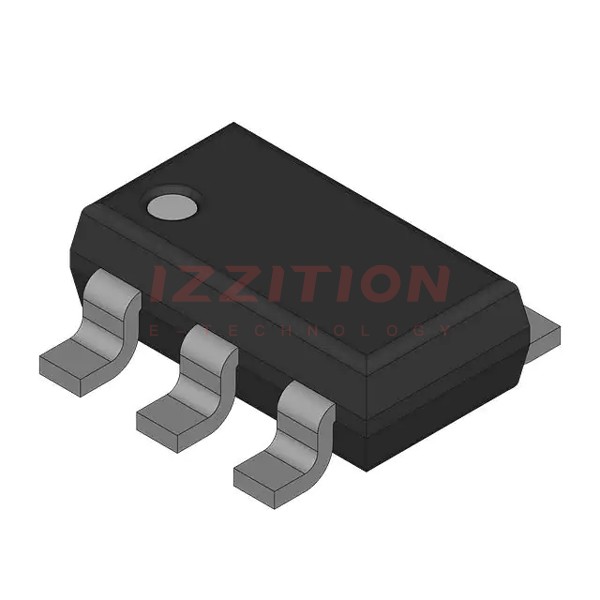

| Part Number | FAN2500S30X | FAN2505S30X | FAN2503S30X | FAN2502S30X | FAN2504S30X | FAN2509S30X | FAN2501S30X | FAN2508S30X | FAN2500S33X | FAN2510S30X |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Obsolete | Obsolete |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | - | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3.3V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.2V @ 200mA | 0.18V @ 150mA | 0.18V @ 150mA | 0.2V @ 200mA | 0.075V @ 50mA | 0.14V @ 100mA | 0.075V @ 50mA | 0.14V @ 100mA | 0.14V @ 100mA |
| Current - Output | - | 200mA | 150mA | 150mA | 200mA | 50mA | 100mA | 50mA | 100mA | 100mA |
| Current - Quiescent (Iq) | - | 75 µA | 50 µA | 50 µA | 75 µA | 50 µA | - | - | 50 µA | 50 µA |
| Current - Supply (Max) | - | - | - | - | - | - | 50 µA | 50 µA | - | - |
| PSRR | - | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) | 43dB (120Hz) |
| Control Features | - | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | - | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
