Please send RFQ , we will respond immediately.
| Part Number | FAN21SV06MPX | FAN23SV06MPX | FAN21SV04MPX | FAN21SV06EMPX |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 7V | 3V | 3V |
| Voltage - Input (Max) | 24V | 15V | 24V | 24V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.6V | 0.8V | 0.8V |
| Voltage - Output (Max) | 19.2V | 5.5V | 19.2V | 19.2V |
| Current - Output | 6A | 6A | 4A | 6A |
| Frequency - Switching | 200kHz ~ 600kHz | 200kHz ~ 1.5MHz | 200kHz ~ 600kHz | 200kHz ~ 600kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -10°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -10°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

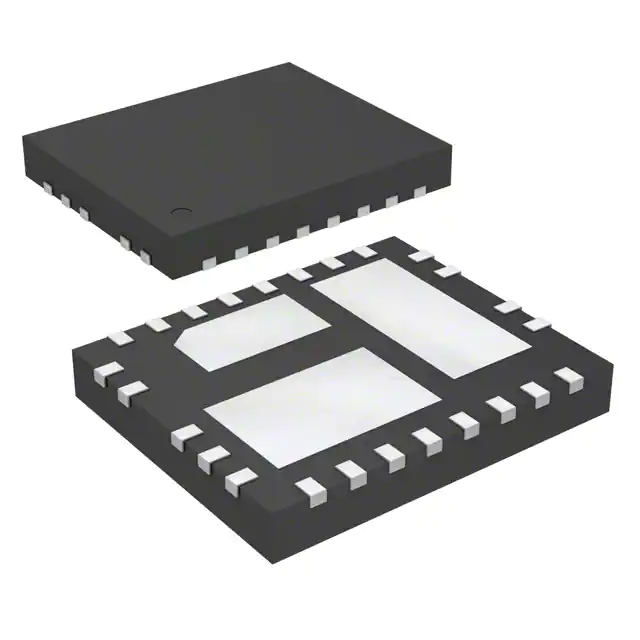

| Package / Case | 25-WQFN Exposed Pad | 34-PowerTFQFN | 25-WQFN Exposed Pad | 25-WQFN Exposed Pad |
| Supplier Device Package | 25-MLP (6x5) | 34-PQFN (5.5x5) | 25-MLP (6x5) | 25-MLP (6x5) |
