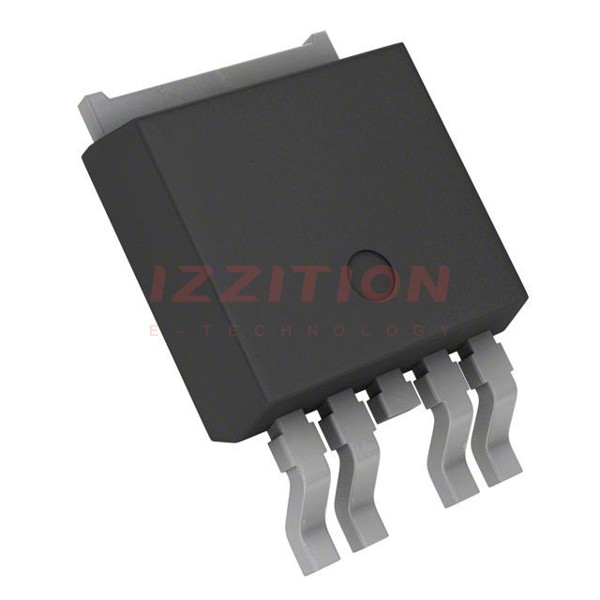

| Part Number | FAN1582D15X | FAN1582D25X | FAN1582M15X | FAN1581D15X | FAN1582D12X |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 7V | 7V | 7V | 7V | 7V |
| Voltage - Output (Min/Fixed) | 1.5V | 2.5V | 1.5V | 1.5V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 1.18V @ 3A | 1.18V @ 3A | 1.18V @ 3A | 1.18V @ 5A | 1.18V @ 3A |
| Current - Output | 3A | 3A | 3A | 5A | 3A |
| Current - Quiescent (Iq) | 6 mA | 6 mA | 6 mA | 6 mA | 6 mA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | 0°C ~ 125°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD | TO-252-5, DPak (4 Leads + Tab), TO-252AD | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-252-5, DPak (4 Leads + Tab), TO-252AD | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | TO-252 (DPAK) | TO-252-4 | TO-263-5 | TO-252-5 | TO-252 (DPAK) |
