onsemi-ESDL4151MX4T5G - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	15V (Max)
Voltage - Breakdown (Min):	15.5V
Voltage - Clamping (Max) @ Ipp:	26V
Current - Peak Pulse (10/1000µs):	47.5A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	USB 2.0, USB 3.0
Capacitance @ Frequency:	0.8pF @ 1MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	2-X3DFN (1x0.6)

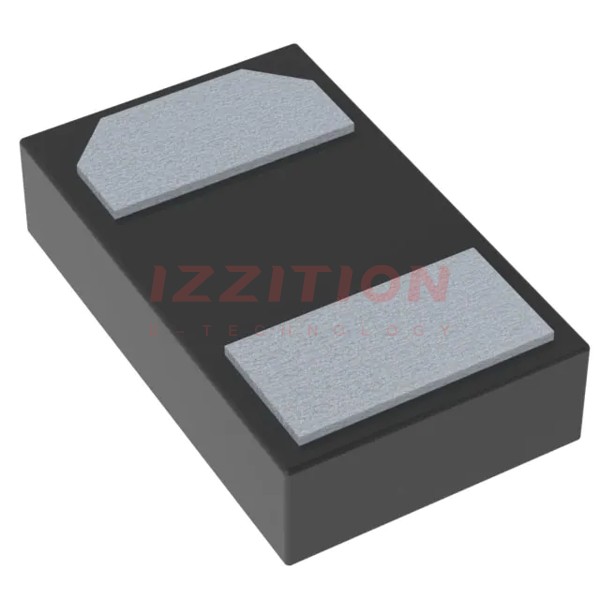

onsemi ESDL4151MX4T5G
