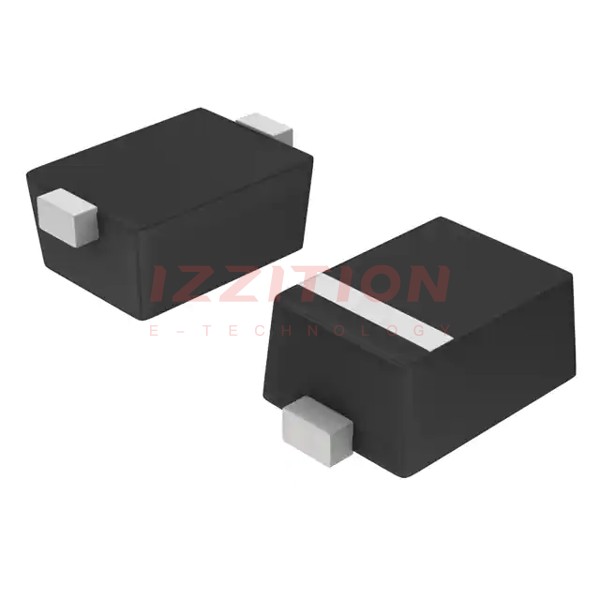

| Part Number | ESD9B5.0ST5G | ESD9X5.0ST5G | ESD9C5.0ST5G | ESD9M5.0ST5G | ESD9D5.0ST5G | ESD9L5.0ST5G | ESD9P5.0ST5G |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Last Time Buy | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | 1 | 1 | 1 | - | 1 | 1 |
| Bidirectional Channels | 1 | - | - | - | 2 | - | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.8V | 6.2V | 11V | 5.8V | 5.4V | 5.4V | 5.8V |
| Voltage - Clamping (Max) @ Ipp | - | 12.3V | - | 9.8V | 13.5V | 9.8V | 9.8V |
| Current - Peak Pulse (10/1000µs) | - | 8.7A (8/20µs) | - | 1A (8/20µs) | 1A (8/20µs) | 1A (8/20µs) | 1A (8/20µs) |
| Power - Peak Pulse | - | 107W | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Automotive | Automotive | General Purpose | General Purpose | Automotive |
| Capacitance @ Frequency | 15pF @ 1MHz | 65pF @ 1MHz | 6pF @ 1MHz | 2.5pF @ 1MHz | 0.6pF @ 1MHz | 0.5pF @ 1MHz | 1.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
