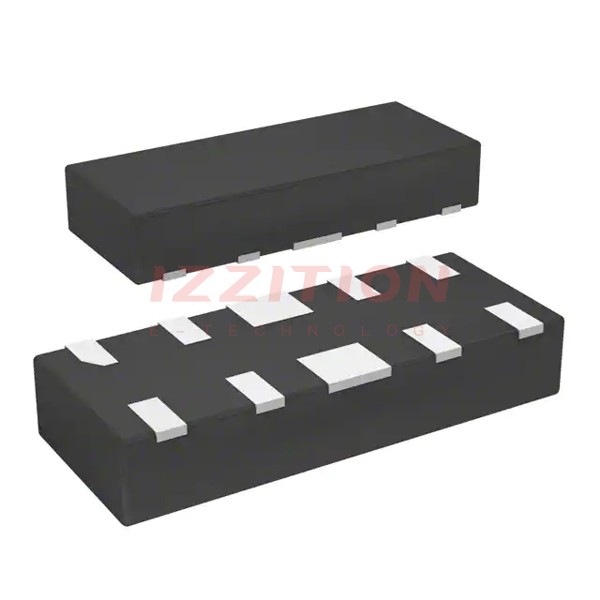

| Part Number | ESD8704MUTAG | ESD8004MUTAG | ESD8104MUTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5V (Typ) | 5.5V | 4V |
| Voltage - Clamping (Max) @ Ipp | - | 8V (Typ) | 11.4V (Typ) |
| Current - Peak Pulse (10/1000µs) | - | 16A | 16A (100ns) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | USB | HDMI, USB |
| Capacitance @ Frequency | 0.3pF @ 1MHz | 0.3pF @ 1MHz | 0.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFDFN | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | 10-UDFN (2.5x1) | 10-UDFN (2.5x1) | 10-UDFN (2.5x1) |
