onsemi-ESD8011MUT5G - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5.5V (Max)
Voltage - Breakdown (Min):	6.5V
Voltage - Clamping (Max) @ Ipp:	19V
Current - Peak Pulse (10/1000µs):	3.6A (8/20µs)
Power - Peak Pulse:	34W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	0.10pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	2-X3DFN (0.6x0.3) (0201)

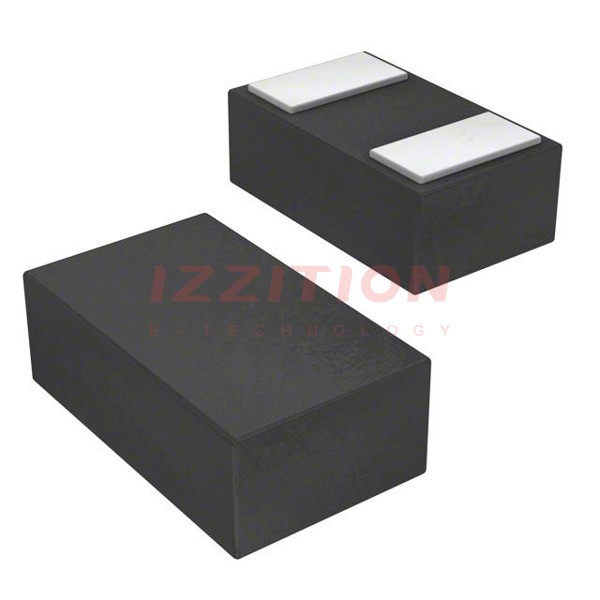

onsemi ESD8011MUT5G
