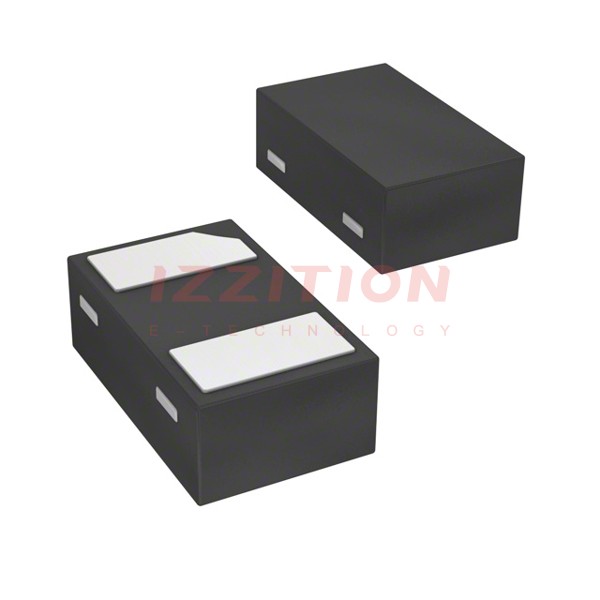

| Part Number | ESD7421N2T5G | ESD7461N2T5G | ESD7471N2T5G | ESD7451N2T5G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5V | 16V (Max) | 5.3V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 10.5V | 16.5V | 7V | 6V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 38.1V | 39V | - | - |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) | 16A (100ns) | - | - |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | Automotive, RF Antenna | Automotive, RF Antenna | Automotive, RF Antenna |
| Capacitance @ Frequency | 0.3pF @ 1MHz | 0.3pF @ 1MHz | 0.24pF @ 1MHz | 0.25pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | 2-XDFN | 2-XDFN |
| Supplier Device Package | 2-XDFN (1x0.6) (SOD-882) | 2-XDFN (1x0.6) (SOD-882) | 2-XDFN (1x0.6) (SOD-882) | 2-XDFN (1x0.6) (SOD-882) |
