onsemi-ESD7124MUTBG - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	4
Voltage - Reverse Standoff (Typ):	3.3V (Max), 12V (Max)
Voltage - Breakdown (Min):	5.5V, 13.3V
Voltage - Clamping (Max) @ Ipp:	9.5V, 15V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	0.35pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN Exposed Pad
Supplier Device Package:	6-UDFN (1.8x2)

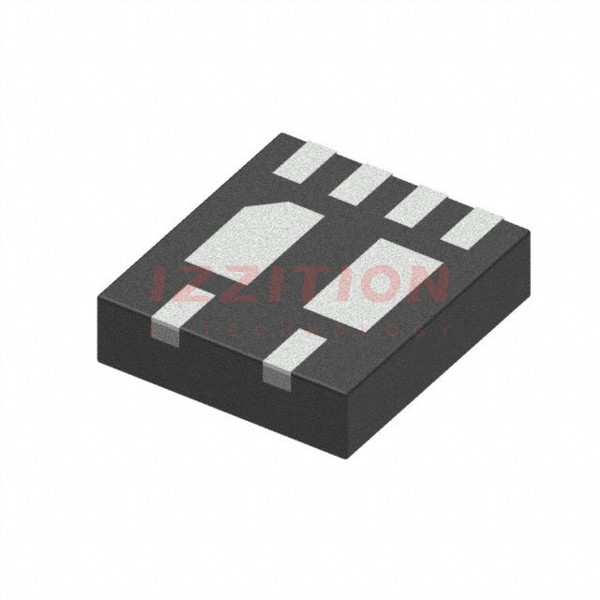

onsemi ESD7124MUTBG
