| Part Number | ESD7004MUTAG | ESD7008MUTAG | ESD8004MUTAG | ESD7104MUTAG | ESD7504MUTAG |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | - | 4 | - | 4 |
| Bidirectional Channels | - | 8 | - | 4 | - |
| Voltage - Reverse Standoff (Typ) | 5V | 5V (Max) | 3.3V (Max) | 5V | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5.5V | 5.5V | 5.5V | 5.5V | 4V |
| Voltage - Clamping (Max) @ Ipp | 10V | 10V | 8V (Typ) | 10V | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 1A (8/20µs) | 16A | 1A (8/20µs) | - |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | HDMI, USB | HDMI, USB | USB | HDMI, USB | HDMI |
| Capacitance @ Frequency | 0.4pF @ 1MHz | 0.12pF @ 1MHz | 0.3pF @ 1MHz | 0.3pF @ 1MHz | 0.55pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

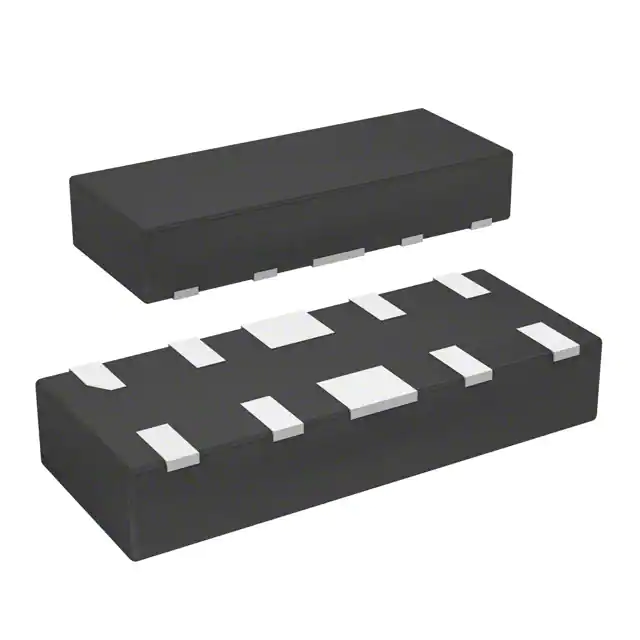

| Package / Case | 10-UFDFN | 18-UFDFN Exposed Pad | 10-UFDFN | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | 10-UDFN (2.5x1) | 18-UDFN (5.5x1.5) | 10-UDFN (2.5x1) | 10-UDFN (2.5x1) | 10-UDFN (2.5x1) |
