onsemi-ESD5484FCT5G - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	6V
Voltage - Clamping (Max) @ Ipp:	11.5V
Current - Peak Pulse (10/1000µs):	7A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	2-XFBGA, WLCSP
Supplier Device Package:	2-WLCSP (0.6x0.3)

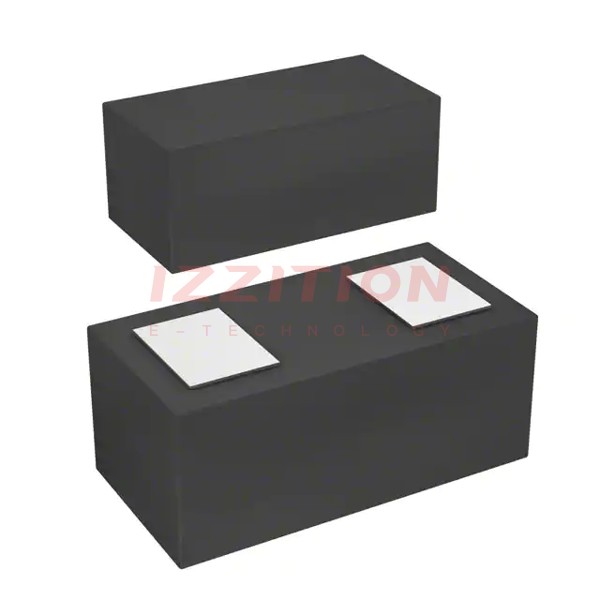

onsemi ESD5484FCT5G
