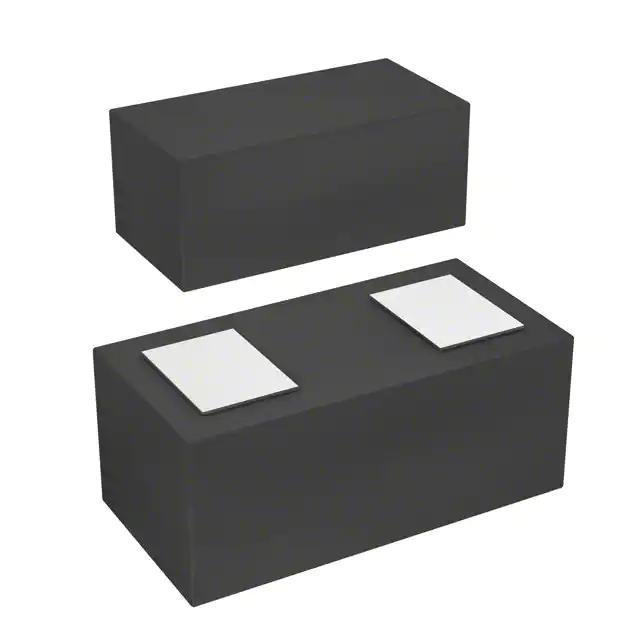

| Part Number | ESD5111FCT5G | ESD5111PFCT5G | ESD5101FCT5G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Type | Steering (Rail to Rail) | Zener | Zener |
| Unidirectional Channels | 1 | - | - |
| Bidirectional Channels | - | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.68V | 3.68V | 3.68V |
| Voltage - Clamping (Max) @ Ipp | 6.5V | 6.5V (Typ) | 6.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) | - | - |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 5.5pF @ 1MHz | 5.5pF @ 1MHz | 5.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XFBGA, WLCSP | 2-XFBGA, WLCSP | 01005 (0402 Metric) |
| Supplier Device Package | 2-WLCSP (0.6x0.3) | 2-WLCSP (0.6x0.3) | 2-DSN (0.44x0.23) |
