onsemi-ESD5004MXTBG - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	3.3V (Max)
Voltage - Breakdown (Min):	3.9V
Voltage - Clamping (Max) @ Ipp:	9.1V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	3.5pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-XFDFN Exposed Pad
Supplier Device Package:	4-X3DFN (0.53x0.93)

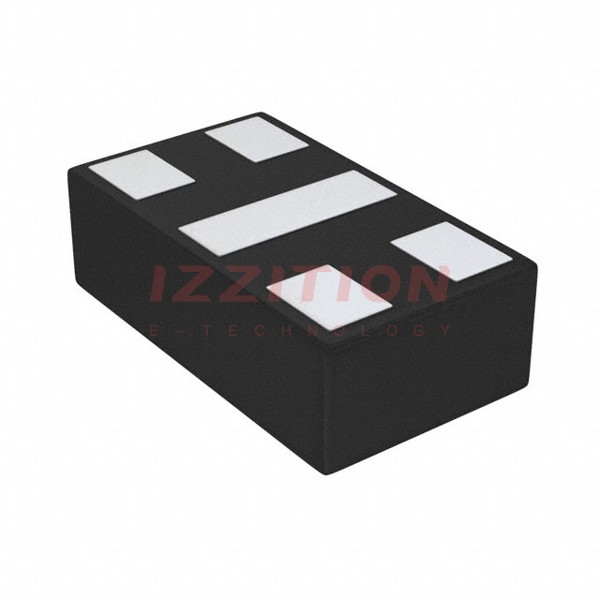

onsemi ESD5004MXTBG
