onsemi-ESD1014MUTAG - TVS - Diodes Product Specifications and Latest Quotes

Type:	Steering (Rail to Rail)
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	3.3V (Max)
Voltage - Breakdown (Min):	5V
Voltage - Clamping (Max) @ Ipp:	11V
Current - Peak Pulse (10/1000µs):	30A (8/20µs)
Power - Peak Pulse:	450W
Power Line Protection:	Yes
Applications:	General Purpose
Capacitance @ Frequency:	3.8pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN Exposed Pad
Supplier Device Package:	10-UDFN (2.6x2.6)

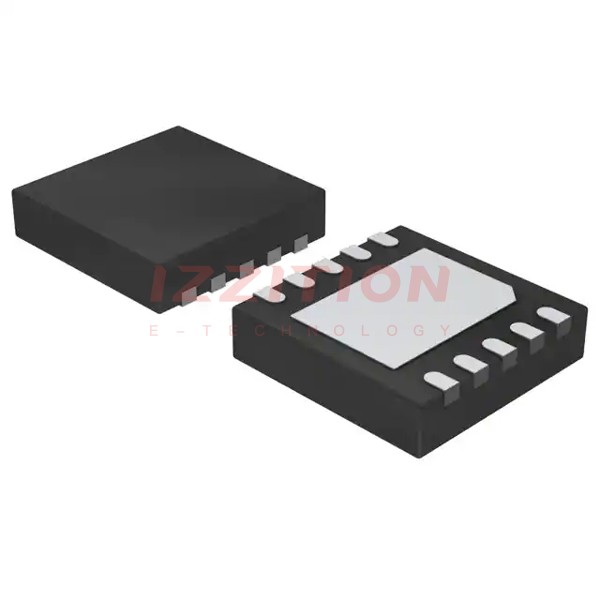

onsemi ESD1014MUTAG
