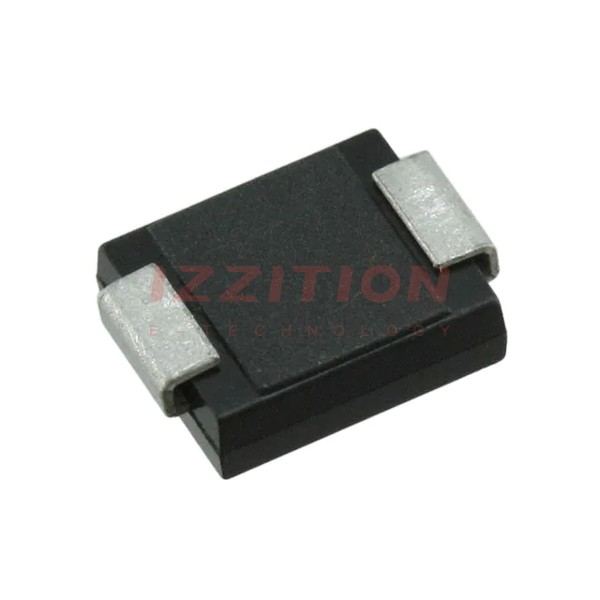

| Part Number | ES3J | ES3JB | ES3JC | ES3D | ES3E | ES3F | ES3G |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | MDD | MDD | SURGE | SMC Diode Solutions | Diotec Semiconductor | SURGE |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 200 V | 300 V | 300 V | 400 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 3 A | 1.68 V @ 3 A | 1.68 V @ 3 A | 950 mV @ 3 A | 1.25 V @ 3 A | 1.3 V @ 3 A | 1.3 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 25 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V | 10 µA @ 200 V | 5 µA @ 300 V | 5 µA @ 300 V | 10 µA @ 400 V |
| Capacitance @ Vr, F | 45pF @ 4V, 1MHz | - | - | 50pF @ 4V, 1MHz | 45pF @ 4V, 1MHz | - | 40pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AA, SMB | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | DO-214AA (SMB) | DO-214AB (SMC) | DO-214AB (SMC) | SMC (DO-214AB) | SMC (DO-214AB) | DO-214AB (SMC) |
| Operating Temperature - Junction | -50°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 150°C |
