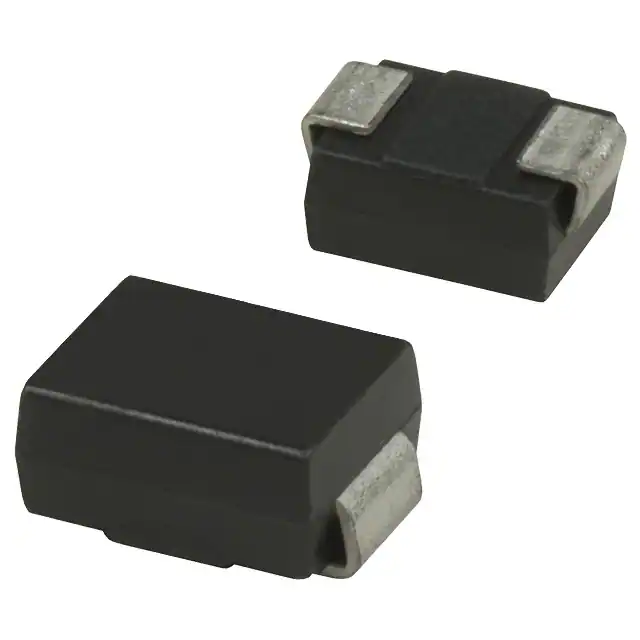

| Part Number | ES2A | ES2D | ES2B | ES2DA | ES2C | ES2CA | ES2AA | ES2BA | ES2AH |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | SURGE | onsemi | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 200 V | 100 V | 200 V | 150 V | 150 V | 50 V | 100 V | 50 V |
| Current - Average Rectified (Io) | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 2 A | 900 mV @ 2 A | 900 mV @ 2 A | 920 mV @ 2 A | 900 mV @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns | 20 ns | 20 ns | 25 ns | 20 ns | 35 ns | 35 ns | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V | 10 µA @ 200 V | 10 µA @ 100 V | 5 µA @ 200 V | 10 µA @ 150 V | 10 µA @ 150 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 50 V |
| Capacitance @ Vr, F | 18pF @ 4V, 1MHz | 18pF @ 4V, 1MHz | 18pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 18pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AC (SMA) | DO-214AA (SMB) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
