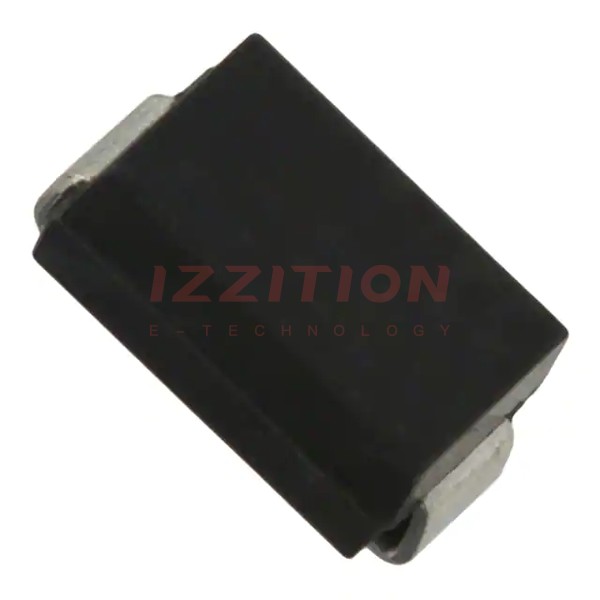

| Part Number | ES1G | ES1J | ES1H | ES1GL | ES1GH | ES1D | ES1E | ES1F |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | SMC Diode Solutions | onsemi | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | onsemi | SMC Diode Solutions | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 500 V | 400 V | 400 V | 200 V | 300 V | 300 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A | 1.7 V @ 1 A | 1.7 V @ 1 A | 1.3 V @ 1 A | 1.3 V @ 1 A | 920 mV @ 1 A | 1.3 V @ 1 A | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 15 ns | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 500 V | 5 µA @ 400 V | 5 µA @ 400 V | 5 µA @ 200 V | 5 µA @ 300 V | 5 µA @ 300 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz | 45pF @ 4V, 1MHz | - | 8pF @ 4V, 1MHz | 16pF @ 4V, 1MHz | 7pF @ 4V, 1MHz | 45pF @ 4V, 1MHz | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-219AB | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | SMA (DO-214AC) | DO-214AC (SMA) | Sub SMA | DO-214AC (SMA) | DO-214AC (SMA) | SMA (DO-214AC) | DO-214AC (SMA) |
| Operating Temperature - Junction | 150°C (Max) | -55°C ~ 150°C | 150°C (Max) | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | 150°C (Max) |
