onsemi-EMI9408MUTAG - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	5th
Technology:	LC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	345MHz (Cutoff)
Attenuation Value:	35dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):	45
Current:	15 mA
Values:	L = 70nH (Total), C = 11.5pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-UFDFN Exposed Pad
Size / Dimension:	0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:	0.024" (0.60mm)

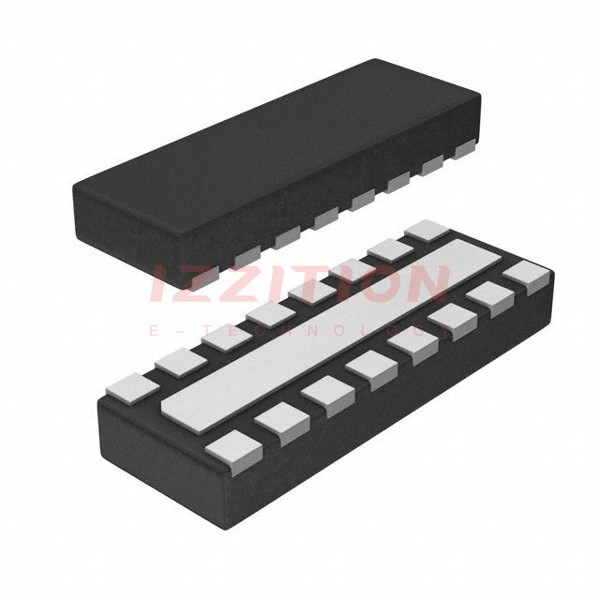

onsemi EMI9408MUTAG
