onsemi-EMI7206MUTAG - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	3rd
Technology:	LC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	250MHz (Cutoff)
Attenuation Value:	-23dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms):	10
Current:	30 mA
Values:	L = 17nH, C = 12pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-UFDFN Exposed Pad
Size / Dimension:	0.098" L x 0.053" W (2.50mm x 1.35mm)
Height:	0.024" (0.60mm)

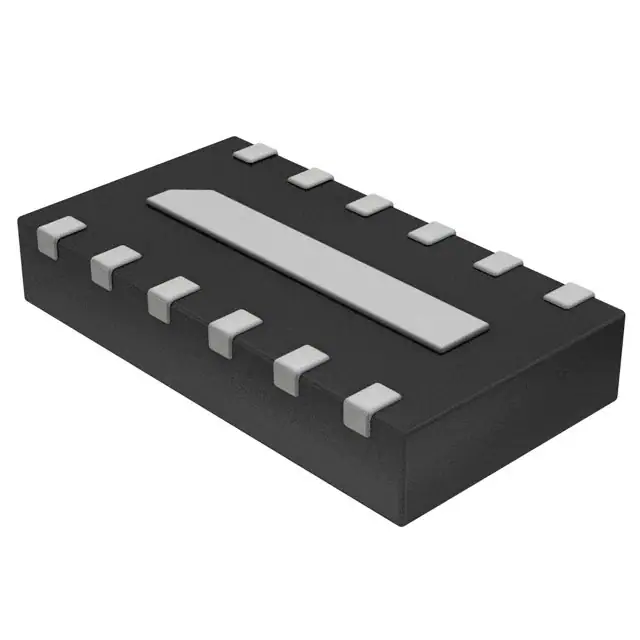

onsemi EMI7206MUTAG
